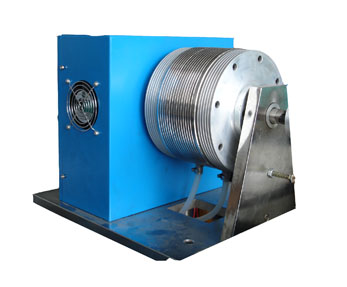

CF Magnetic Powder Dynamometers




Features:
.No residual torque,low inertia,and high sensitive load.
.Torque value per unit volume is 2~3 times as CC dynamometer.
.Suitable for the test of low speed& large torque motor, gear motor, window-lift motor, wiper motor, bicycle motor, etc.
.Accuracy: ±0.5%(Full scale) ±1digit (if need the high accuracy,please contact us)

Model
Max Torque
Max Speed
Rated Power(Max)
  (N·m) (r/min) 5 minutes (W) Continuous (W)
CF50K
5 5000 250 100
CF50KS/F
5 5000 800 400
CF100K
10 5000 400 200
CF100KS/F
10 5000 1500 800
CF200K
20 4000 800 400
CF200KS/F
20 4000 3000 1500
CF500K
50 4000 1200 600
CF500KS/F
50 4000 4000 2000
CF1KK
100 3000 1200 800
CF1KKS
100 3000 6000 3000
CF2KK
200 1500 1500 1000
CF2KKS
200 1500 8000 5000
CF50KKS
5000 500 55K 45K

Note:
·The special cooling system can be added on the dynamometer to increase the running power according the customer’s requirements.
·The customized specification of dynamometers can be made according the customer’s requirements.
·Mark “S” means cold water cooling,the cold water cooling circulation system is needed. Mark “F” means fan or blower cooling, the fan/blower cooling system is needed
