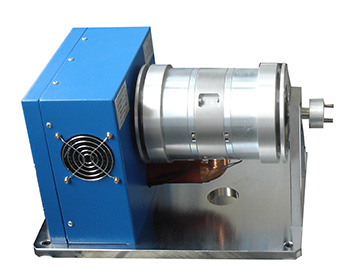

CC Hysteresis Dynamometers
|
|
| Features: |
| .Low inertia of rotor's drag cup structure. |
| .High sensitivity & stability and long life. |
| .Suitable for the test of medium and low power motor,simply operate and be most used in the motor test. |
| .Accuracy: ±0.5%(Full scale) ±1digit (if need the high accuracy,please contact us) |
| |
Model |
Max Torque |
Drag Torque |
Max Speed |
Rated Power(Max) |
| |
( N·m ) |
de-energized at 1000r/min (N·m) |
(r/min) |
5minutes (Watts) |
Continuous (Watts) |
CC100 |
10m |
0.4m |
35000 |
25 |
10 |
CC200 |
20m |
0.6m |
30000 |
40 |
20 |
CC500 |
50m |
1.6m |
30000 |
50 |
30 |
CC1K |
0.1 |
0.004 |
25000 |
80 |
45 |
CC2K |
0.2 |
0.006 |
25000 |
200 |
90 |
CC5K |
0.5 |
0.016 |
22000 |
300 |
150 |
CC10K |
1 |
0.04 |
20000 |
450 |
250 |
CC10KS/F |
1 |
0.05 |
20000 |
600 |
400 |
CC20K |
2 |
0.06 |
18000 |
700 |
350 |
CC20KS/F |
2 |
0.06 |
18000 |
1000 |
500 |
CC30K |
3 |
0.06 |
18000 |
700 |
350 |
CC30KS/F |
3 |
0.06 |
18000 |
1200 |
600 |
CC40K |
4 |
0.16 |
15000 |
1200 |
500 |
CC40KS/F |
4 |
0.16 |
15000 |
1500 |
1000 |
CC50K |
5 |
0.2 |
15000 |
1200 |
600 |
CC50KS/F |
5 |
0.2 |
15000 |
1600 |
1200 |
CC60K |
6 |
0.2 |
15000 |
1200 |
600 |
CC60KS/F |
6 |
0.2 |
15000 |
1600 |
1200 |
CC100K |
10 |
0.4 |
8000 |
1500 |
800 |
CC100KS/F |
10 |
0.4 |
8000 |
2000 |
1500 |
CC140KS/F |
14 |
0.5 |
8000 |
2000 |
1500 |
CC200KS/F |
20 |
0.8 |
6000 |
2800 |
2000 |
CC300KS/F |
30 |
0.8 |
4000 |
3000 |
2500 |
CC60KLS/F |
6 |
0.2 |
8000 |
1600 |
1200 |
Note:
·The special cooling system can be added on the dynamometer to increase the running power according the customer’s requirements.
·The customized specification of dynamometers can be made according the customer’s requirements.
·Mark “S” means cold water cooling,the cold water cooling circulation system is needed. Mark “F” means fan or blower cooling, the fan/blower cooling system is needed
·Type L is the vertical dynamometer special for Mower. Type H is high-speed dynamometer. |
| |
|
