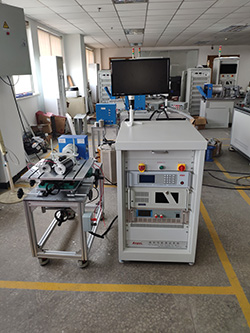

Permanent-Magnet DC Motor Test System






Features:

1. By digital PID adjustment, system can run constant load(torque, current or powerin), and once the load be set, it will be automatically stable in 2~3seconds without any outside adjusting by hand.
2. Stable strips left-up loading(Multi-point value load), the number of point can be over 10, with loading control of the constant current, torque and constant input power.
3. Automatically do permanent-magnet DC motor performance test in 0~60 sec, and draw out the motor characteristic curve M=f(U, I, W, n, P,η).
4. Do the test automatically or by hand, automatically save record during test, and data print.
5. Using DC regulated Power supply with voltage feedback, the motor's running voltage can not drop.
6. After 30~40mins constant load(set by user), user can do temperature-rise test by AGR4 Resistance Test Equipment, and automatically get the result by corresponding sofware.

Customers: Johnson Electric, shenzhen dongsheng
